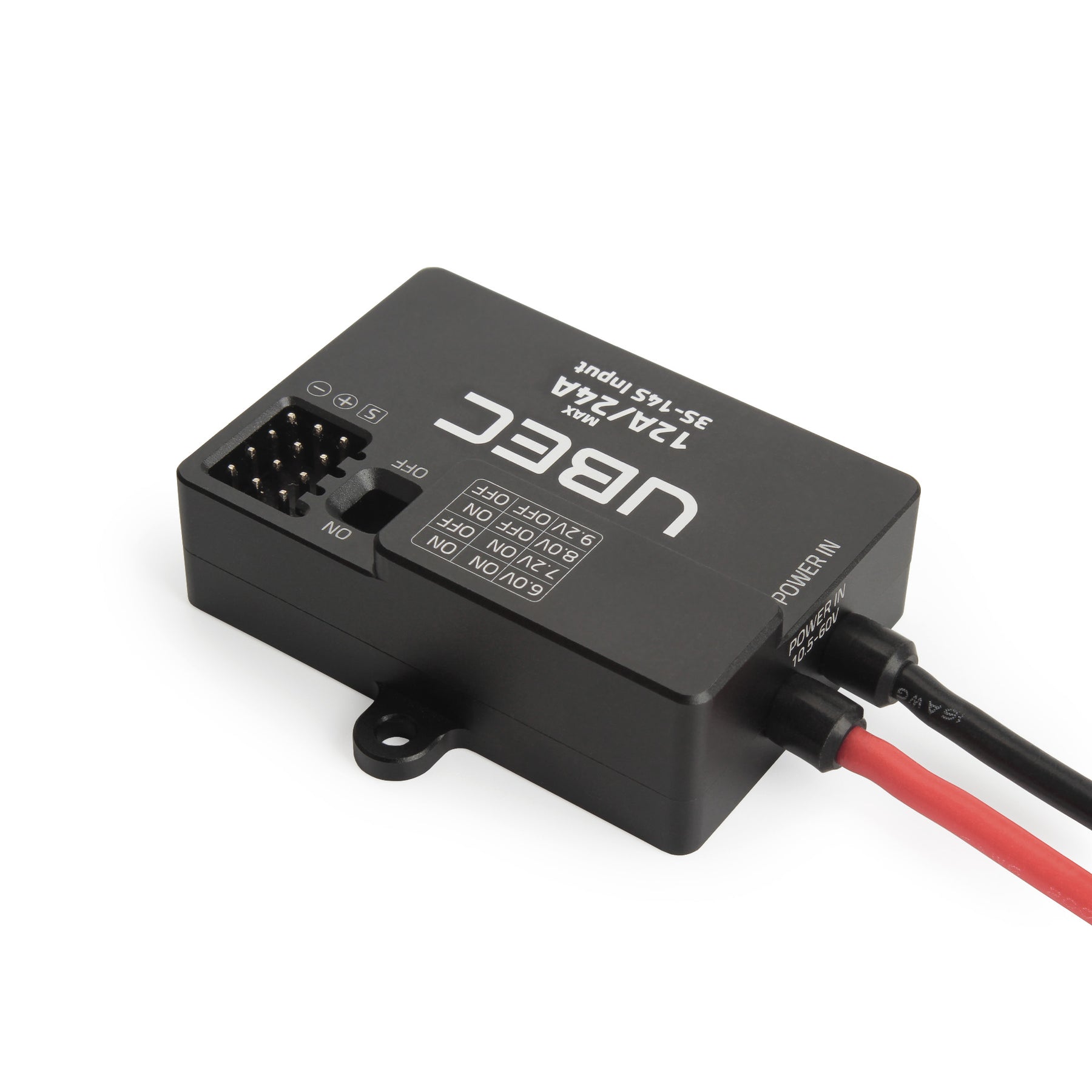

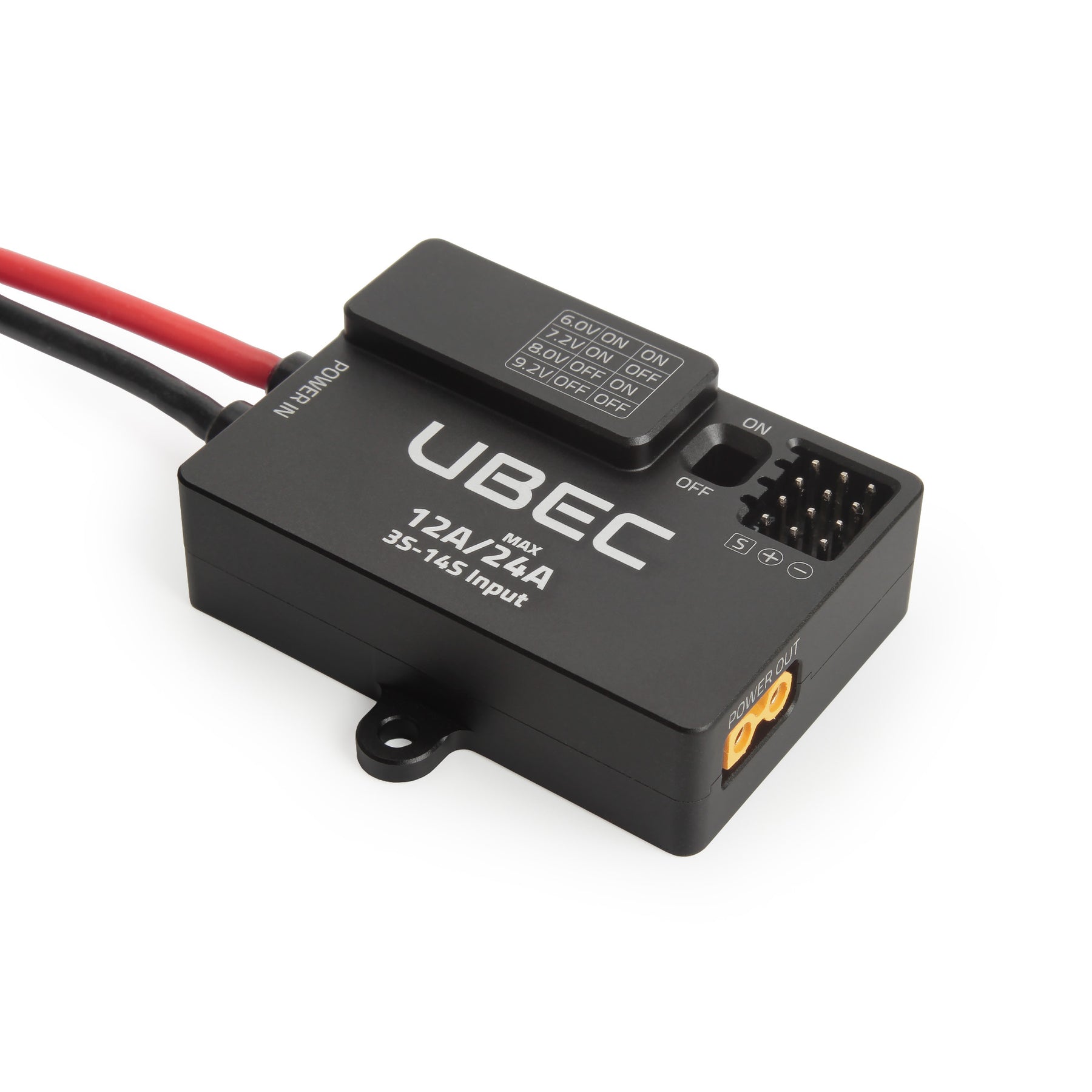

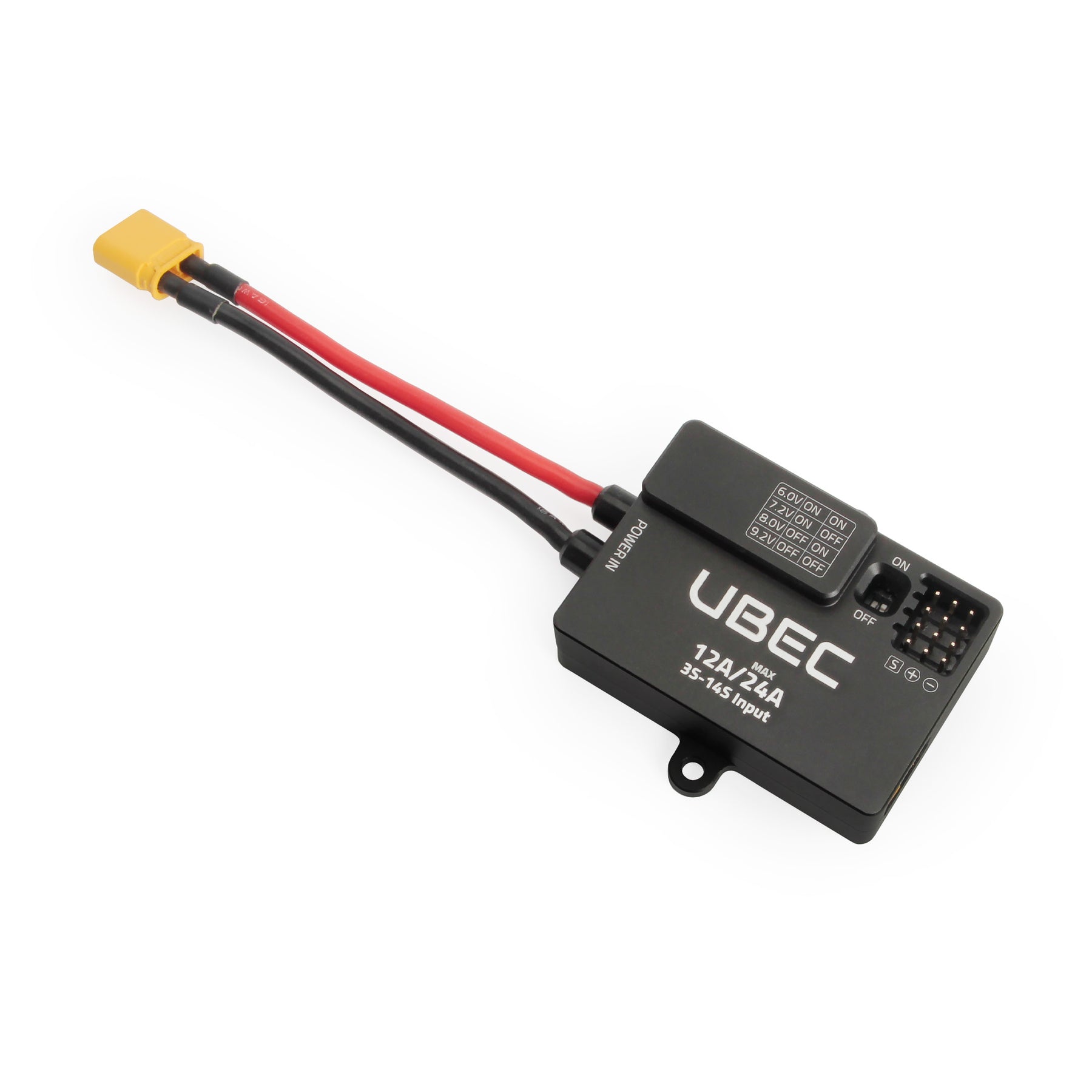

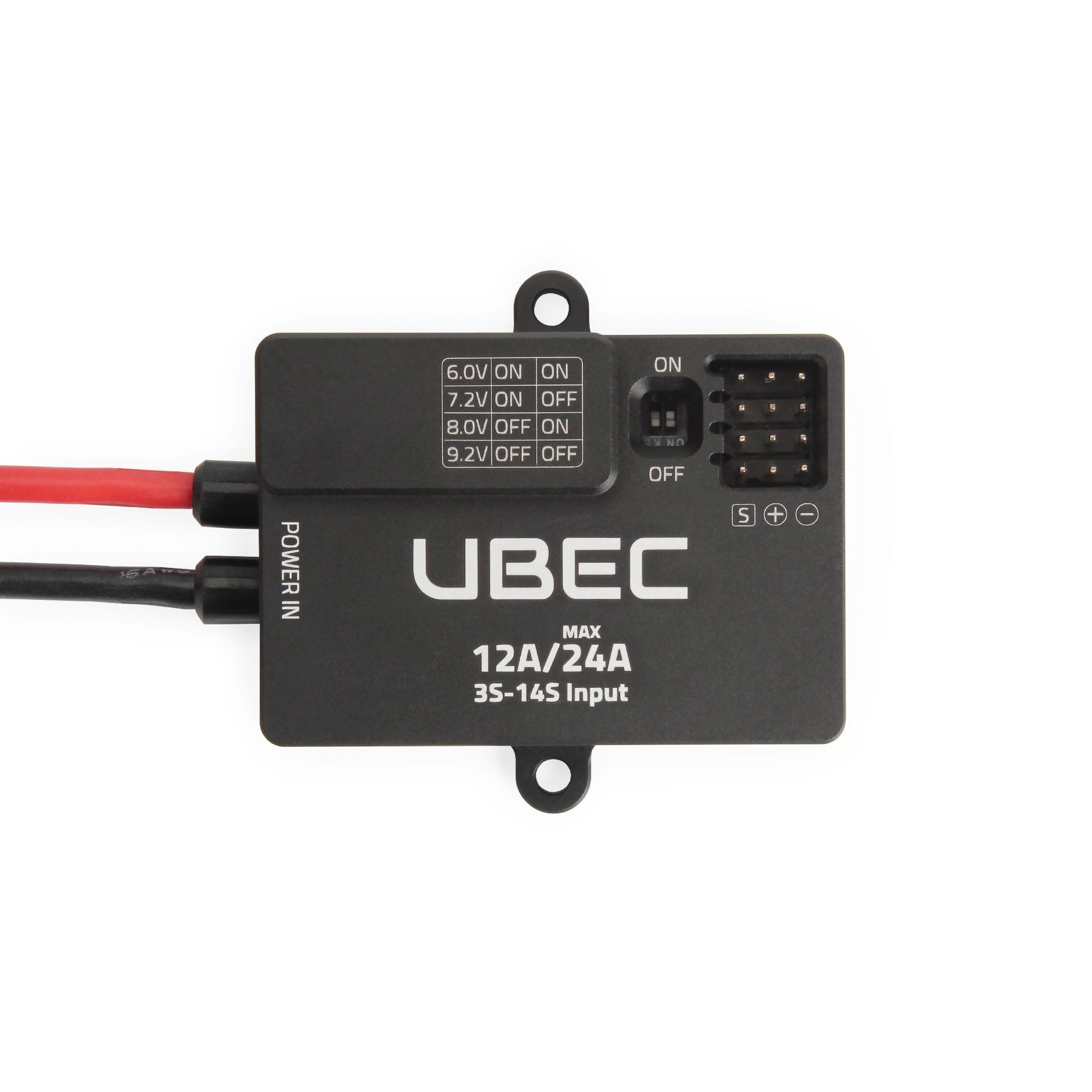

UBEC 12A (3-14S)

Description

Overview
UBEC 12A (3-14S) is a synchronous step-down regulator from a high voltage or widely varying input supply. It draws the DC voltage from a 3-14S LiPo battery and drops the voltage to a level suitable for receivers and other electronic devices, and keeps providing a stable current output of up to 12Amp. The output voltage can be adjusted by the onboard DIP switches.

Features
High efficiency DC-DC regulator chip for transfer efficiency of over 90%
Adjustable output voltage (6.0V/7.2V/8.0V/9.2V) applicable for devices with different voltages
4-channel parallel header pin outputs for servos
XT30 output for high current devices
Multiple protections including over-current, (output end) short circuit, overheat, and low-voltage cutoff
Metal housing for quick heat dissipation and less electromagnetic interference.

Specifications
Input voltage: 3~14S (XT30)
Output voltage: 6.0V/7.2V/8.0V/9.2V (Adjustable by using onboard DIP Switches)
Output Current
Continuous: 12A
Burst: 24A

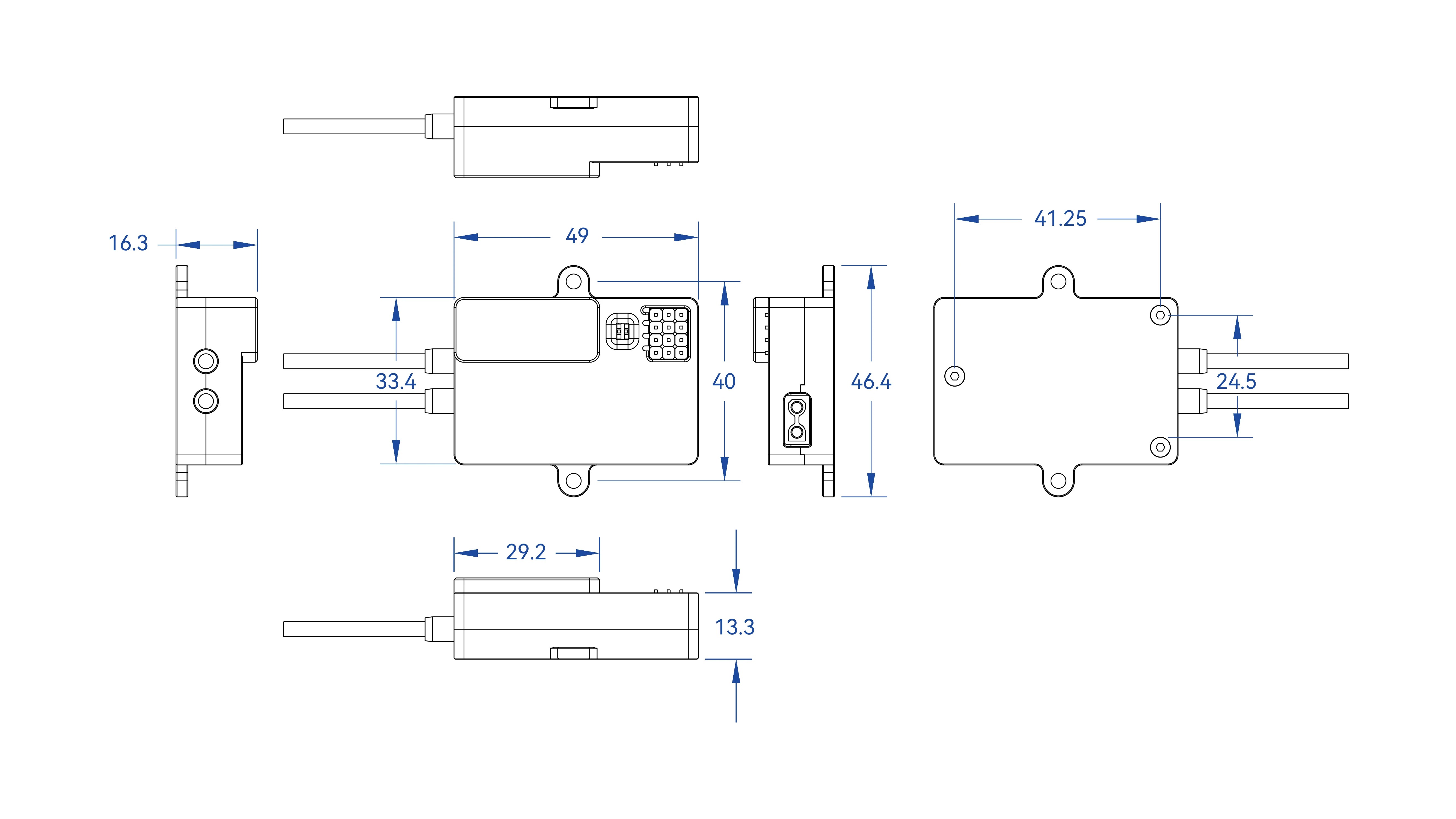

Size: 48×33.6×16.3 mm
Weight: 47.8g

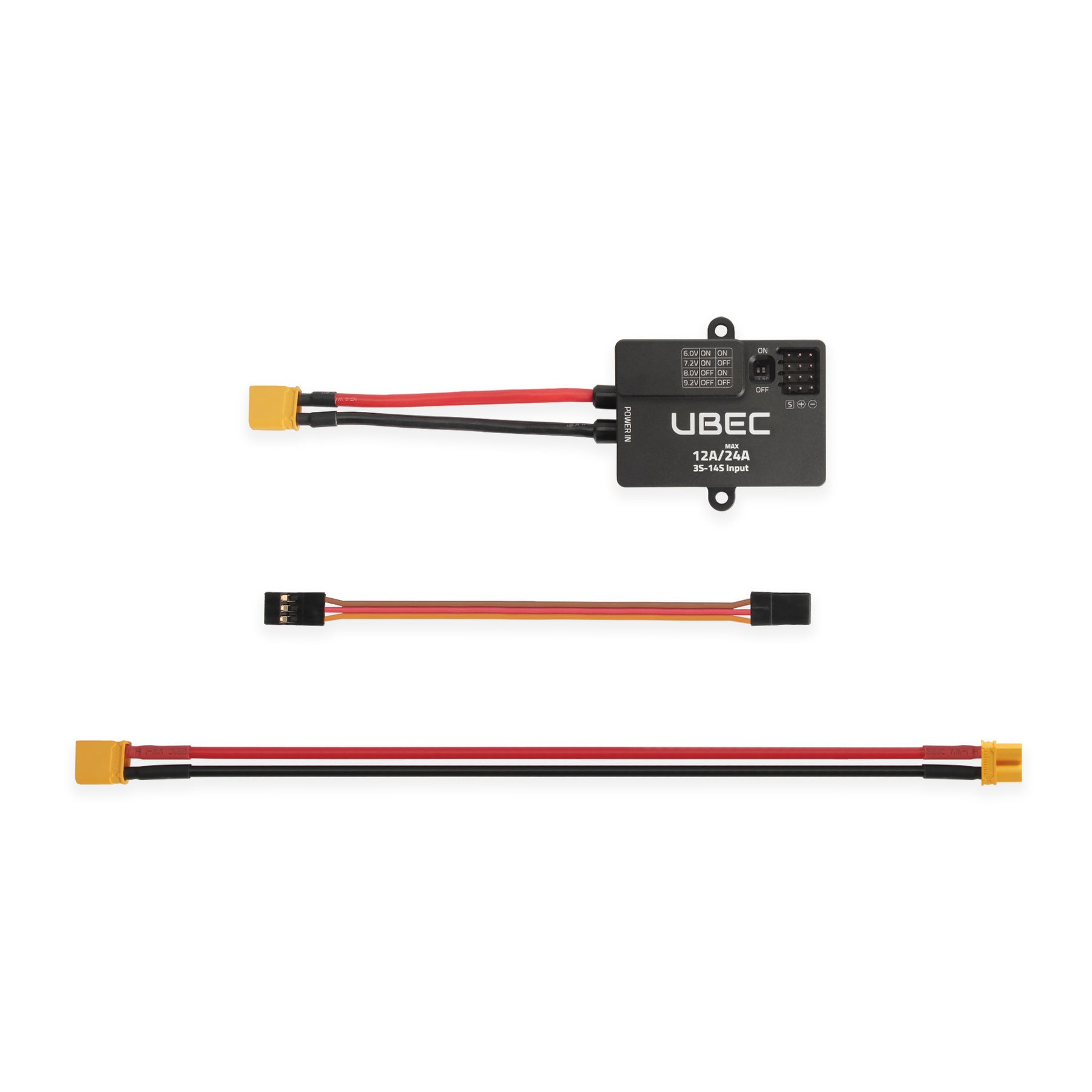

Package Includes：
1x UBEC Power Module
1x XT30 18AWG Cable
1x DuPont 3P Cable
