Pixhawk 6X

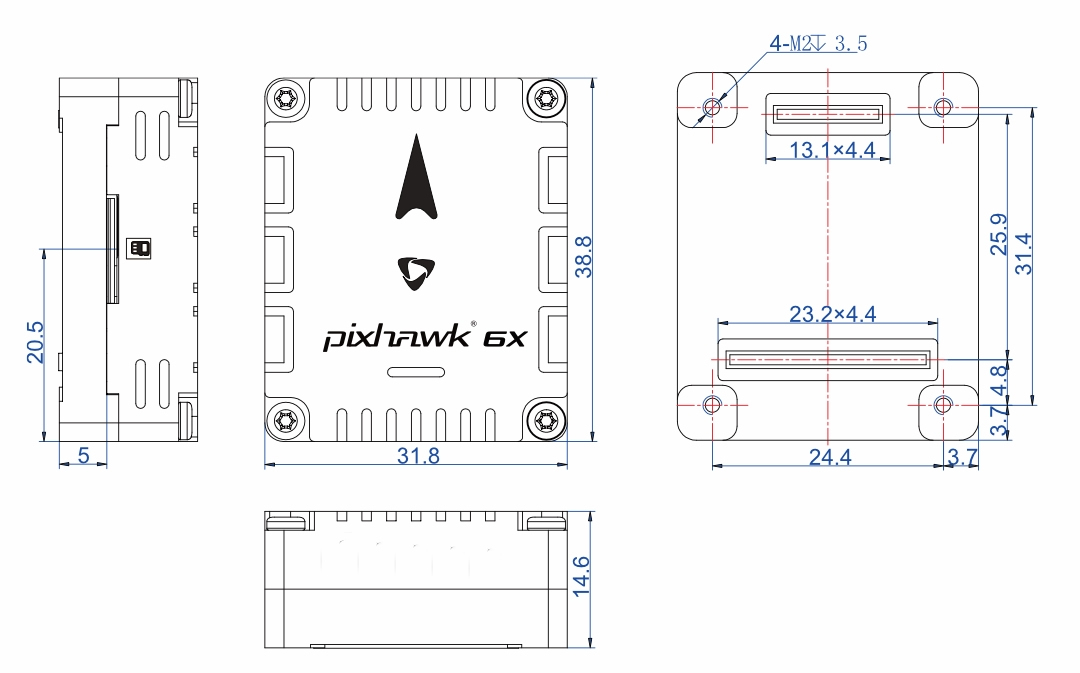

Pixhawk 6X Rev 3 & 4 Dimensions

Dimension in Millimeters
The previous shipped “Rev3 & 4” has different dimension compared to the “Rev8”.

Rev3 & 4

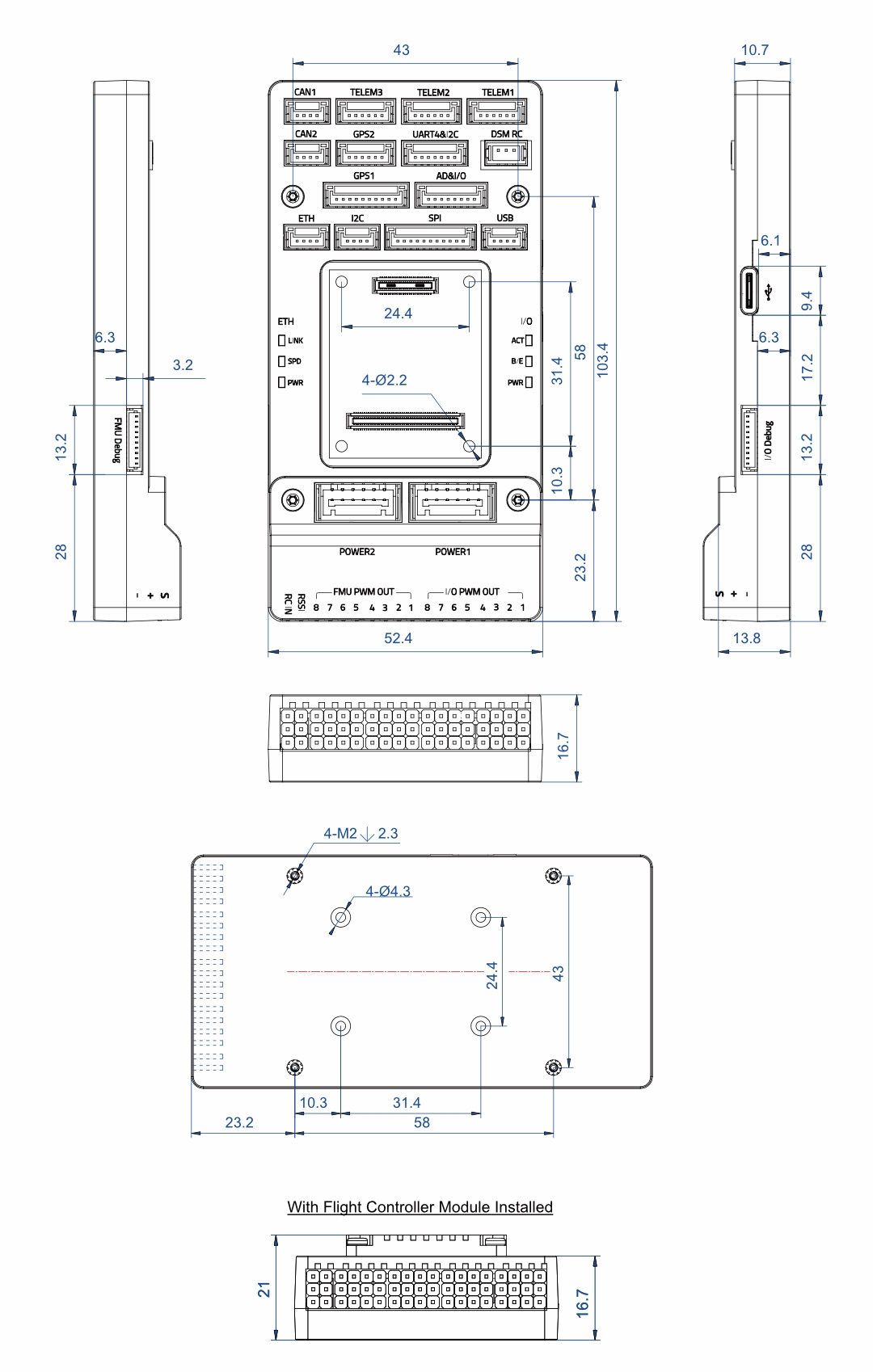

Standard Baseboard

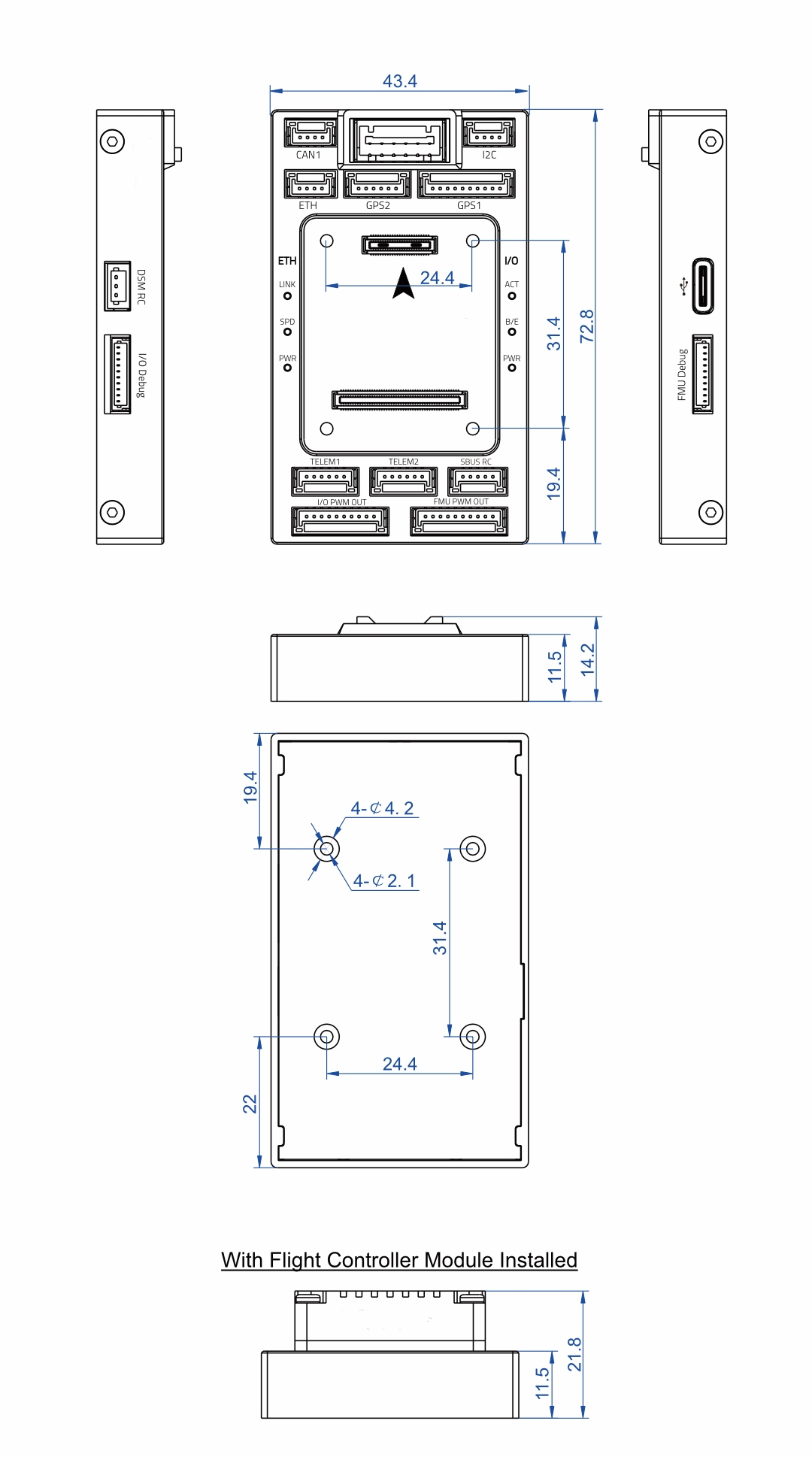

Mini Baseboard
