Pixhawk Rev 8 (Current)
Dimension in Millimeters
This version is currently being shipped.

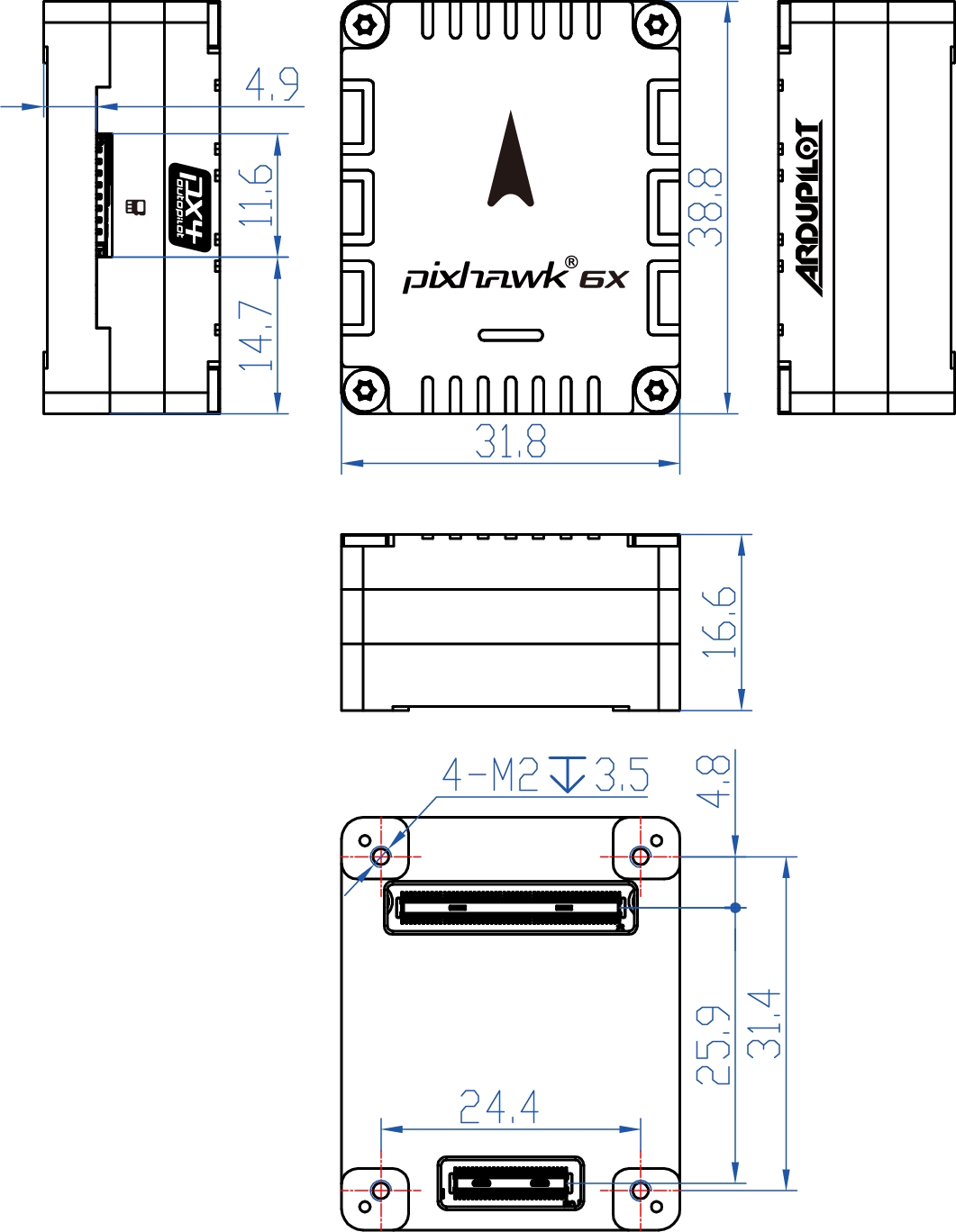

Pixhawk FC Module Only

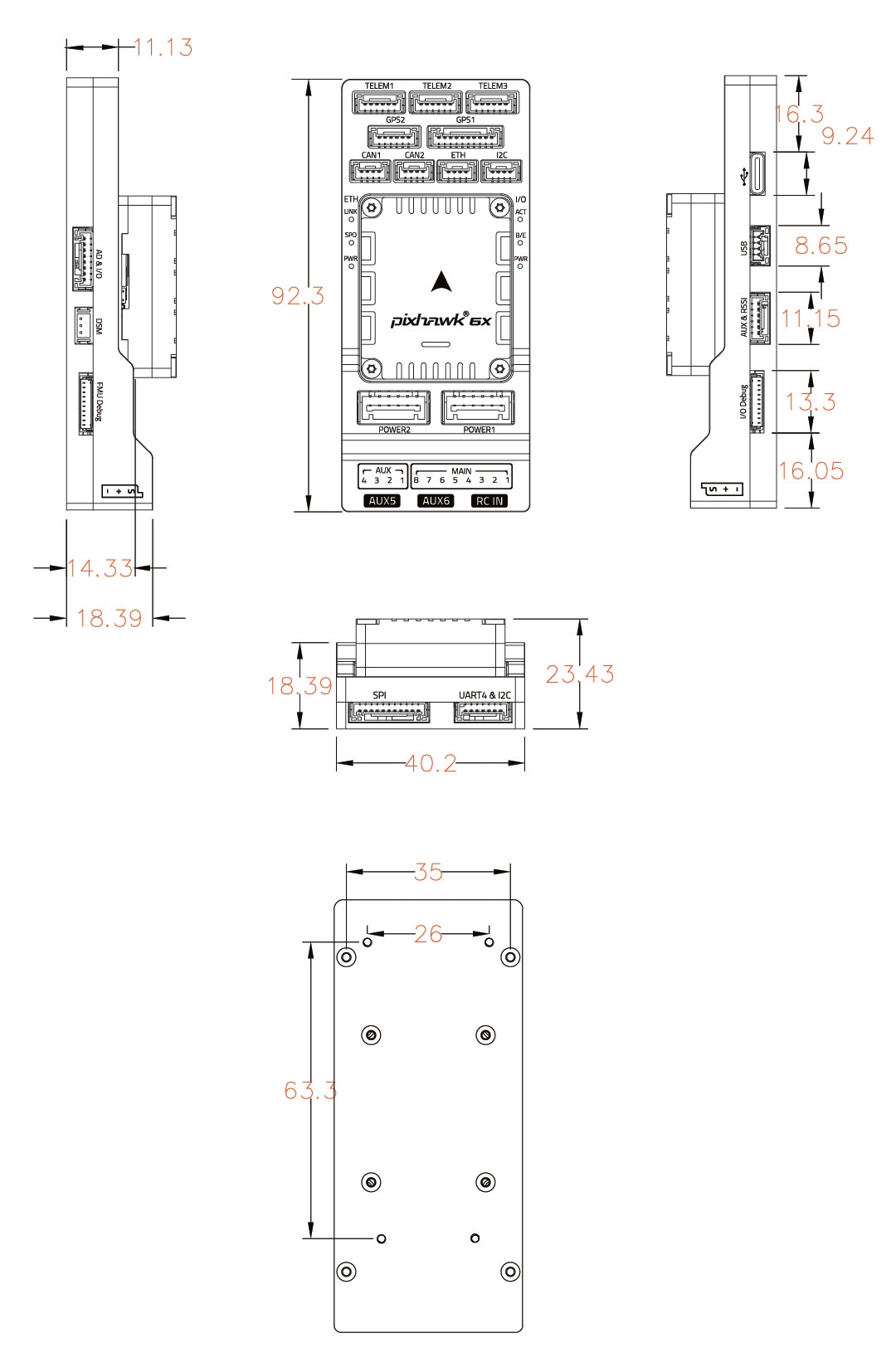

Pixhawk Standard Baseboard v2A

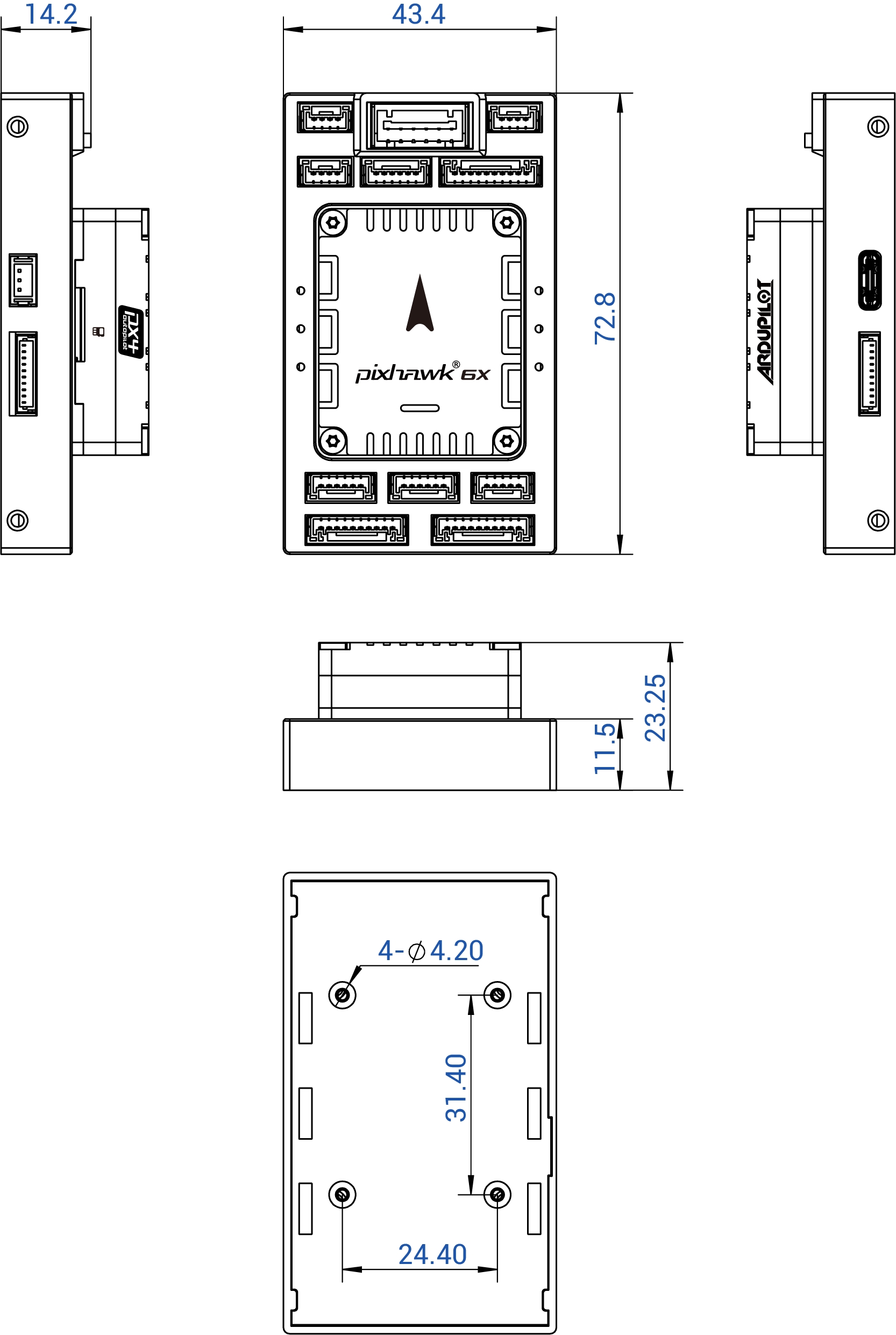

Pixhawk Mini Baseboard

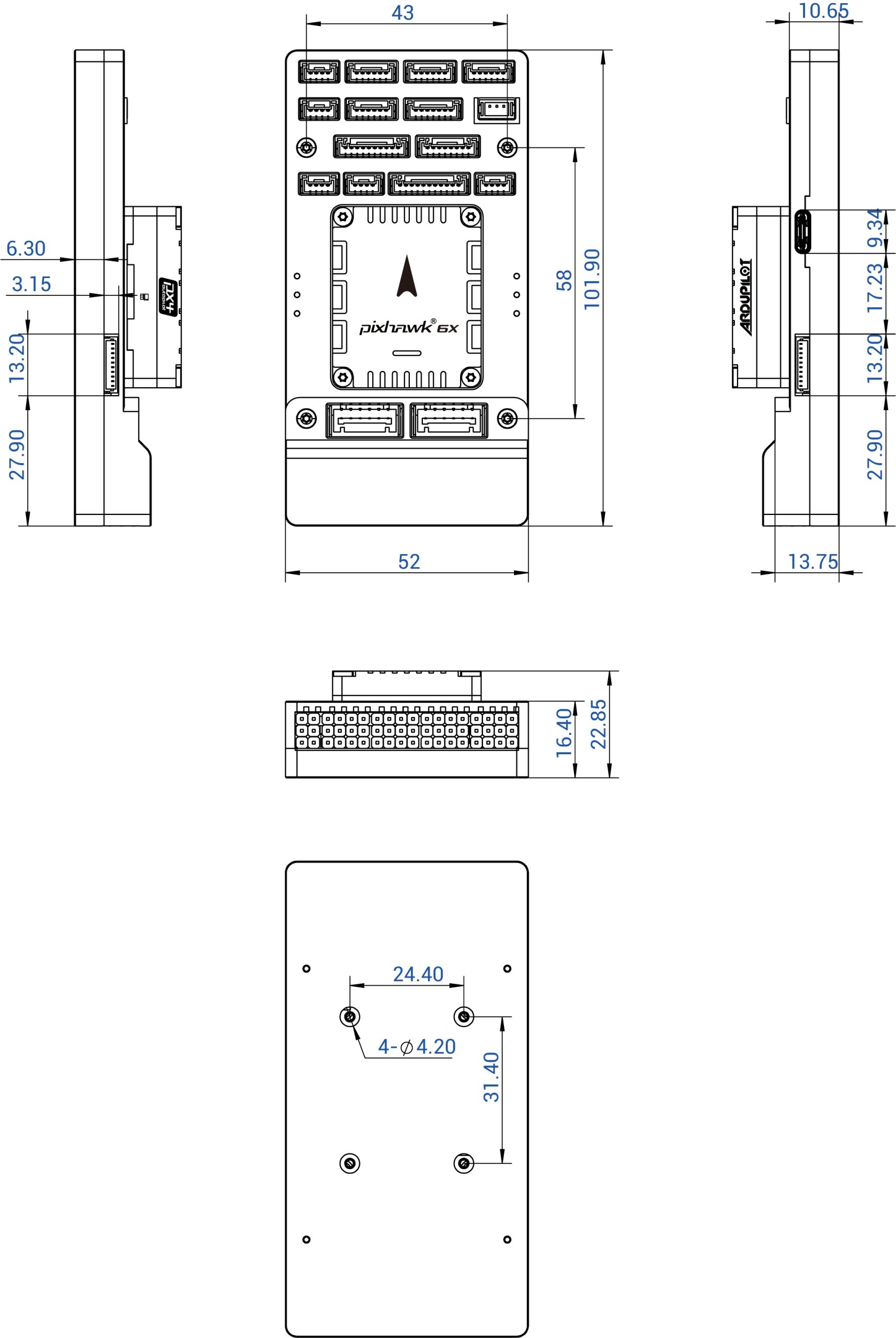

Pixhawk Standard Baseboard v1
Processors & Sensors FMU Processor: STM32H75332 Bit Arm Cortex-M7, 480MHz, 2MB flash memory, 1MB RAMIO Processor: STM32F103 32 Bit Arm Cortex-M3, 72MHz, 64KB SRAM On-board sensors (Shipping Currently, Rev8)Accel/Gyro: 3x ICM-45686 (with BalancedGyro鈩?Technology)Barometer: ICP20100 & BMP388Mag: BMM150On-board sensors (Previous Revision, Rev3/4)Accel/Gyro: BMI088/ICM-20649Accel/Gyro: ICM-42688-PAccel/Gyro: ICM-42670-PBarometer: 2x BMP388Mag: BMM150 Electrical data Voltage Ratings:Max input voltage: 6VUSB Power […]
Inside the Pixhawk 6X, you can find an STMicroelectronics based STM32H753, paired with sensor technology from Bosch, InvenSense,giving you flexibility and reliability for controlling any autonomous vehicle, suitable for both academic and commercial applications.The Pixhawk 6X’s H7 microcontroller contain the Arm Cortex-M7 core running up to 480 MHz, has 2MB flash memory and 1MB RAM. […]
Pixhawk Baseboard v1 PortsPixhawk Baseboard v2 PortsPixhawk Mini Baseboard PortsPixhawk RPi CM4 BaseboardPixhawk Jetson Baseboard
Dimension in Millimeters The previous shipped “Rev3 & 4” has different dimension compared to the “Rev8”. Rev3 & 4 Standard Baseboard Mini Baseboard
